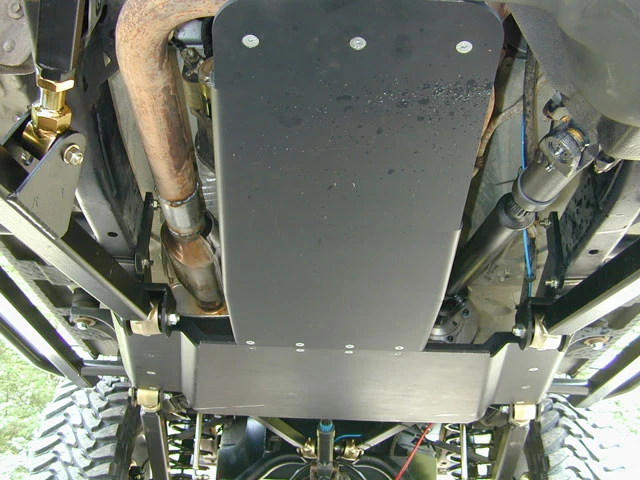

Jeep Wrangler Engine Skid Plate (1996-2006, TJ/LJ) [6 Cyl ONLY]

Clayton Off Road engine/oil pan skid plate is the ultimate addition to your current Clayton Off Road 2 piece transfer case skid plate.

• Jeep Wrangler Transfer Case Skid Plate (1997-2006, TJ/LJ) – Clayton Off Road

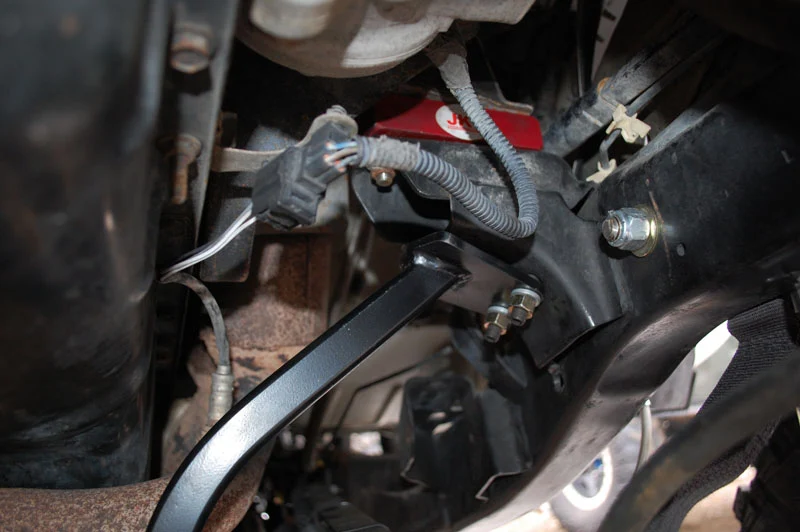

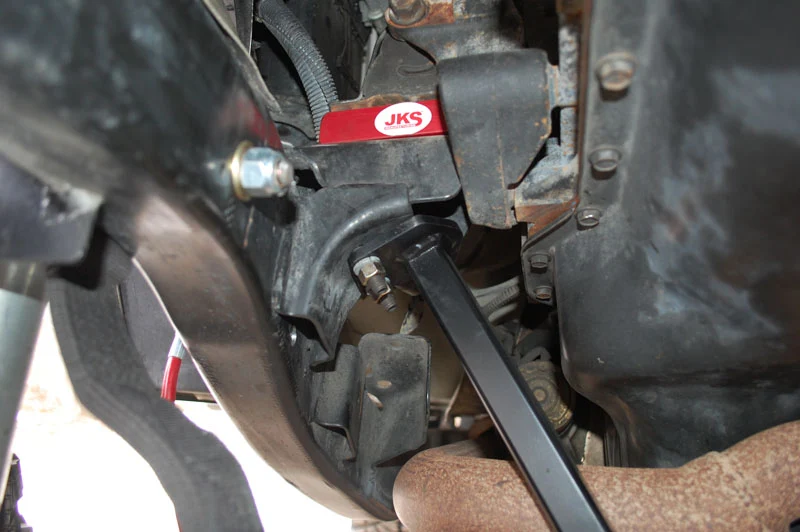

This engine skid plate is specifically designed to work with our main skid plate. The oil pan skid plate comes with a front bolt in bracket which holds the front of the skid plate using counter sunk allen head bolts. While the back attaches to our main skid plate with another bolt on bracket. No oil drain holes is cut because it will slightly weaken the skid plate, plus add a hole you may get hung up on. Some customers have chosen to drill a 3-4 inch hole to make oil changes easier. Many customers simply drop the oil pan skid plate section by removing the 7 bolts.

Skid plate is shipped bare metal.

NOTES:

1. 1. Product fits I-6 motor ONLY
2. 2. Designed to be used with our TJ or LJ transfer case skid plate.

Lost a bracket? Damaged some hardware on the trail? We've got you covered.

Keep your Clayton Off Road skid system performing the way it was designed without purchasing an entirely new skid plate. Check out these replacement parts:

• Front 3 Hole Mount ONLY - COR 4109001
• Rear 8 Hole Mount ONLY - COR 4109002
• Bracket Hardware ONLY - COR 4109003
• Bracket ONLY - COR 4109004
• Skid Plate ONLY - COR 4109005
